Part #: SYS-6017R-TDF

Item Code: SRSUM00104

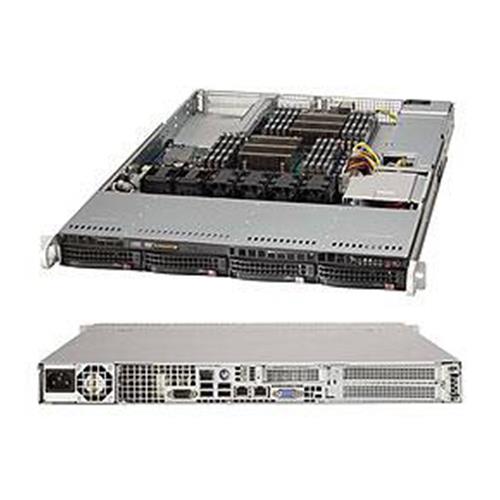

Supermicro SuperServer SYS-6017R-TDF Intel® Xeon® processor E5-2600 v2, DDR3 1866MHz; 8x DIMM slots, 1x PCI-E 3.0 x16 FHHL slot (SYS-6017R-TDF)

Name: Supermicro SuperServer SYS-6017R-TDF Intel® Xeon® processor E5-2600 v2, DDR3 1866MHz; 8x DIMM slots, 1x PCI-E 3.0 x16 FHHL slot
Brand: SUPERMICRO
SKU: SRSUM00104
Price: 1150 CAD
Availability: InStock

SUPERMICRO

Part #: SYS-6017R-TDF

Item Code: SRSUM00104

Supermicro SuperServer SYS-6017R-TDF Intel® Xeon® processor E5-2600 v2, DDR3 1866MHz; 8x DIMM slots, 1x PCI-E 3.0 x16 FHHL slot (SYS-6017R-TDF)

15-day Low Price Guarantee

No Return RETURN PERIOD

You'll have No Return to return or exchange this item.

$1,150.00

Qty:

Tech Care Replace Protection See Benefits

Tech Care Replace Protection

See Benefits

2 Year

$172.50
3 Year

$195.50

Availability

CUSTOM ORDER

AVAILABLE TO ORDER

Custom order products are not eligible for returns unless defective.
Delivery time may vary for Custom Order products. You will be notified once your order is ready to ship.

Main Features

Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
DDR3 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
Fast Ethernet port is the ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
Featuring 9 USB ports to connect USB-compatible devices
With Serial ATA/600 interface get superb reliability and high-speed data transfer

Marketing Information

Designed for optimal performance, the dual-processor SuperServers support the QPI (8.0GT/s) format Xeon processor E5-2600 family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

Return Period	No Return
Defective Exchange Period	30 Days

Return Period	No Return
Defective Exchange Period	30 Days

NO HEADER

Brand	Supermicro
Model	CSE-813T-441CB
Motherboard	Super X9DRD-iF
CPU	Dual Socket R (LGA 2011) Intel® Xeon® processor E5-2600 and E5-2600 v2 family (up to 135W TDP *)
Cores / Cache	Up to 30MB
System Bus	QPI up to 8 GT/s
Note	BIOS version 3.0 or above is required
Memory Capacity	8x 240-pin DDR3 DIMM slots <br/>Up to 512GB DDR3 ECC LRDIMM <br/>Up to 256GB DDR3 ECC Registered memory (RDIMM) <br/>Up to 64GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB, 64GB LRDIMM
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors <br/>Detects double-bit errors (using ECC memory)
Chipset	Intel® C602 Chipset
SATA	Via Cable for SATA controller SATA 2.0 (3Gbps) & 3.0 (6Gbps) with RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>Nuvoton WPCM450 BMC
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet <br/>Virtual Machine Device Queues reduce I/O overhead <br/>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output <br/>1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	Matrox G200eW
Serial ATA	2x SATA 3.0 ports (6Gbps) <br/>2x SATA 2.0 ports (3Gbps)
LAN	2x RJ45 Gigabit Ethernet LAN ports <br/>1x RJ45 Dedicated IPMI LAN port
USB	9x USB 2.0 ports total <br/>(4x rear + 4x via header + 1x Type A)
VGA	1 x VGA Port
Serial Port / Header	2x Fast UART 16550 ports (rear/header)
Form Factor	1U Rackmount
Dimensions (D x W x H)	25.6 x 17.2 x 1.7" (65 x 43.7 x 4.3 cm)
Weight	36 lbs (16.4kg)
Available Colours	Black
Buttons	Power On/Off button <br/>System Reset button <br/>UID button
LEDs	Power status LED <br/>HDD activity LED <br/>2x Network activity LEDs <br/>Universal Information (UID) LED
PCI-Express	1x PCI-E 3.0 x16 Full-height, Half-length <br/>(Both CPUs need to be installed for full access to PCI-E slots. See manual for details.)
Hot-swap	4x 3.5" Hot-swap SAS/SATA2 HDD Bays
DVD-ROM	Slim DVD-ROM drive (optional)
Backplane	1x 1U SAS / SATA backplane
Fans	2x 10cm PWM blower fans
Power Supply	440W/480W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC
AC Input	100-140V, 50-60Hz, 5.5-4A <br/>180-240V, 50-60Hz, 3.5-2.5A
DC Output	+3.3V: 15A <br/>+5V: 18A <br/>+5V standby: 3A <br/>+12V: <br/>35.8A at 100-140Vac <br/>39.1A at 180-240Vac
Certification	Platinum Certified
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	Plug and Play (PnP) <br/>APM 1.2 <br/>PCI 2.2 <br/>ACPI 1.0 / 2.0 <br/>USB Keyboard support <br/>SMBIOS 2.3 <br/>UEFI
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: <br/>10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: <br/>-40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: <br/>8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: <br/>5% to 95% (non-condensing)

NO HEADER

Brand	Supermicro
Model	CSE-813T-441CB
Motherboard	Super X9DRD-iF
CPU	Dual Socket R (LGA 2011) Intel® Xeon® processor E5-2600 and E5-2600 v2 family (up to 135W TDP *)
Cores / Cache	Up to 30MB
System Bus	QPI up to 8 GT/s
Note	BIOS version 3.0 or above is required
Memory Capacity	8x 240-pin DDR3 DIMM slots <br/>Up to 512GB DDR3 ECC LRDIMM <br/>Up to 256GB DDR3 ECC Registered memory (RDIMM) <br/>Up to 64GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB, 64GB LRDIMM
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors <br/>Detects double-bit errors (using ECC memory)
Chipset	Intel® C602 Chipset
SATA	Via Cable for SATA controller SATA 2.0 (3Gbps) & 3.0 (6Gbps) with RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>Nuvoton WPCM450 BMC
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet <br/>Virtual Machine Device Queues reduce I/O overhead <br/>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output <br/>1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	Matrox G200eW
Serial ATA	2x SATA 3.0 ports (6Gbps) <br/>2x SATA 2.0 ports (3Gbps)
LAN	2x RJ45 Gigabit Ethernet LAN ports <br/>1x RJ45 Dedicated IPMI LAN port
USB	9x USB 2.0 ports total <br/>(4x rear + 4x via header + 1x Type A)
VGA	1 x VGA Port
Serial Port / Header	2x Fast UART 16550 ports (rear/header)
Form Factor	1U Rackmount
Dimensions (D x W x H)	25.6 x 17.2 x 1.7" (65 x 43.7 x 4.3 cm)
Weight	36 lbs (16.4kg)
Available Colours	Black
Buttons	Power On/Off button <br/>System Reset button <br/>UID button
LEDs	Power status LED <br/>HDD activity LED <br/>2x Network activity LEDs <br/>Universal Information (UID) LED
PCI-Express	1x PCI-E 3.0 x16 Full-height, Half-length <br/>(Both CPUs need to be installed for full access to PCI-E slots. See manual for details.)
Hot-swap	4x 3.5" Hot-swap SAS/SATA2 HDD Bays
DVD-ROM	Slim DVD-ROM drive (optional)
Backplane	1x 1U SAS / SATA backplane
Fans	2x 10cm PWM blower fans
Power Supply	440W/480W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC
AC Input	100-140V, 50-60Hz, 5.5-4A <br/>180-240V, 50-60Hz, 3.5-2.5A
DC Output	+3.3V: 15A <br/>+5V: 18A <br/>+5V standby: 3A <br/>+12V: <br/>35.8A at 100-140Vac <br/>39.1A at 180-240Vac
Certification	Platinum Certified
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	Plug and Play (PnP) <br/>APM 1.2 <br/>PCI 2.2 <br/>ACPI 1.0 / 2.0 <br/>USB Keyboard support <br/>SMBIOS 2.3 <br/>UEFI
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: <br/>10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: <br/>-40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: <br/>8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: <br/>5% to 95% (non-condensing)
