MSI

Part #: MPG Z790I EDGE WIFI

Item Code: MBMSI00310

MSI MPG Z790I EDGE WIFI, Intel ITX LGA 1700, Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors, 2 Dimm DDR5, PCIE 5.0, M.2 x 3, USB 3.2 Ports USB Type-C, JRAINBOW, WIFI 6E

Name: MSI MPG Z790I EDGE WIFI ITX LGA 1700 Motherboard
Brand: MSI
SKU: MBMSI00310
Price: 429.99 CAD
Availability: InStock

MSI

Part #: MPG Z790I EDGE WIFI

Item Code: MBMSI00310

MSI MPG Z790I EDGE WIFI, Intel ITX LGA 1700, Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors, 2 Dimm DDR5, PCIE 5.0, M.2 x 3, USB 3.2 Ports USB Type-C, JRAINBOW, WIFI 6E

15-day Low Price Guarantee

$429.99

OPEN BOX

$408.49

Free Shipping

Tech Care Replace Protection See Benefits

Tech Care Replace Protection

See Benefits

2 Year

$64.50
3 Year

$73.10

Availability

Delivery

Sold out online

Update Location >

Update Location>

Store Pickup

1 Available at Markham Unionville, ON

Check Other Stores >

Document

BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information.

Perform In Style

The MPG Z790I EDGE WIFI is a gaming oriented Mini-ITX motherboard constructed around the latest Intel Z790 chipset that delivers both performance and style.

Supports Intel Core 12th & 13th Gen Processors

The MPG Z790I EDGE WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: Mini-ITX

Socket Type: LGA 1700

Chipset: Intel Z790

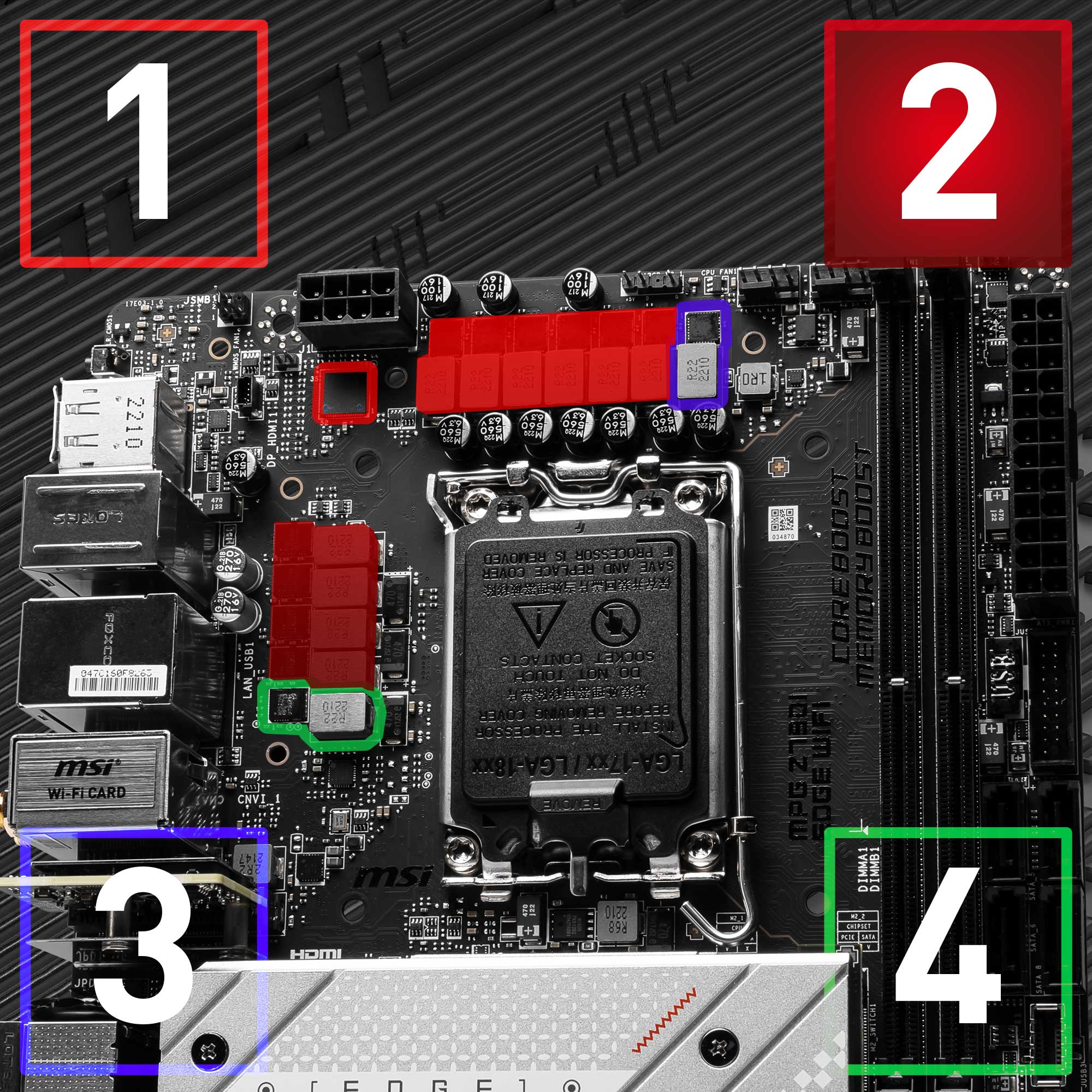

Direct 10+1+1 phase VRM power with 105A SPS

With its exclusive Core Boost technology, the MPG Z790I EDGE WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

1. Digital PWM IC

2. 10-Phase direct CPU Power (Smart Power Stage / 105A)

3. 1-Phase GT Power

4. 1-Phase AUX Power

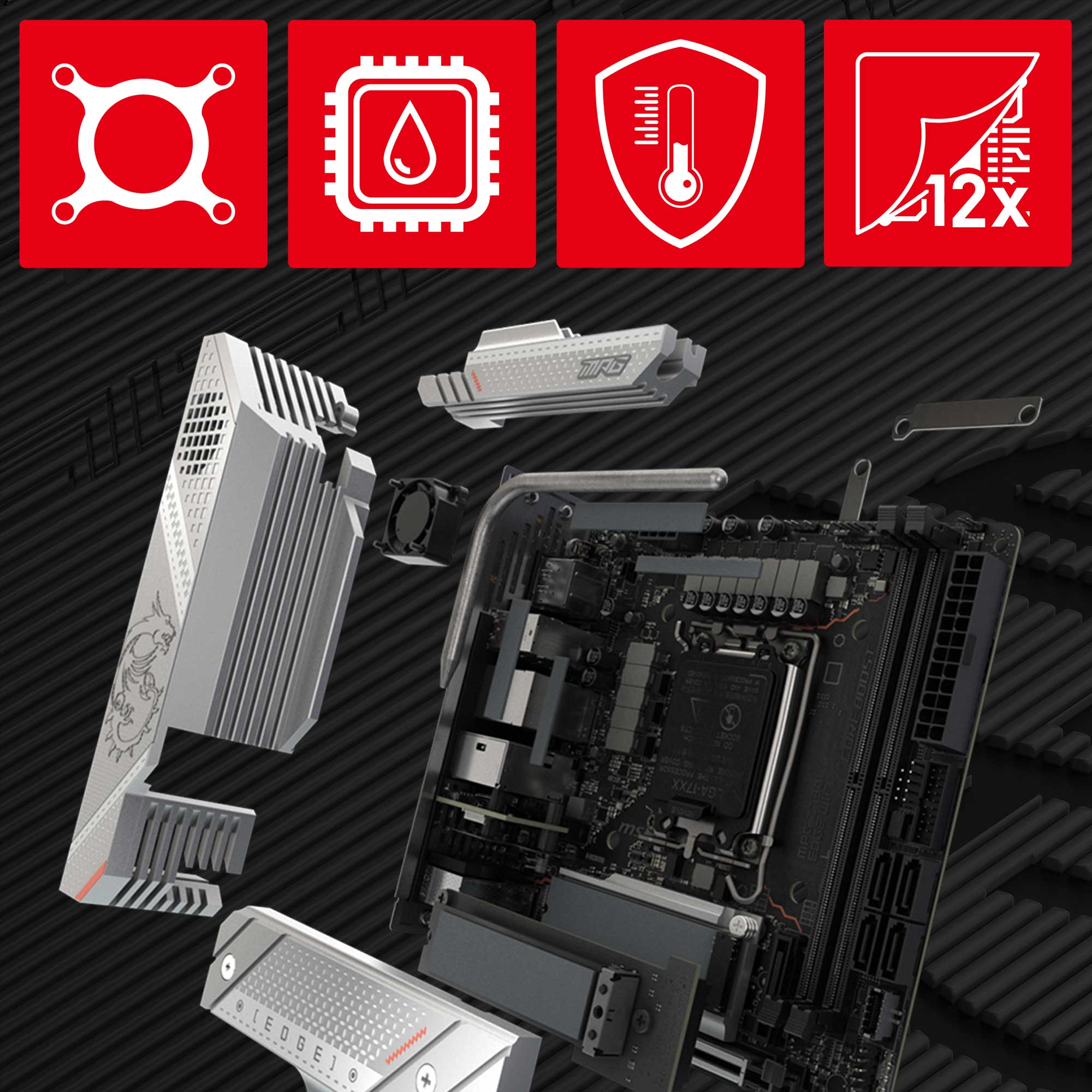

Integrated Cooling Features

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

PCB Cooling: Premium 12-layer server-grade printed circuit design improves heat dissipation & reliability.

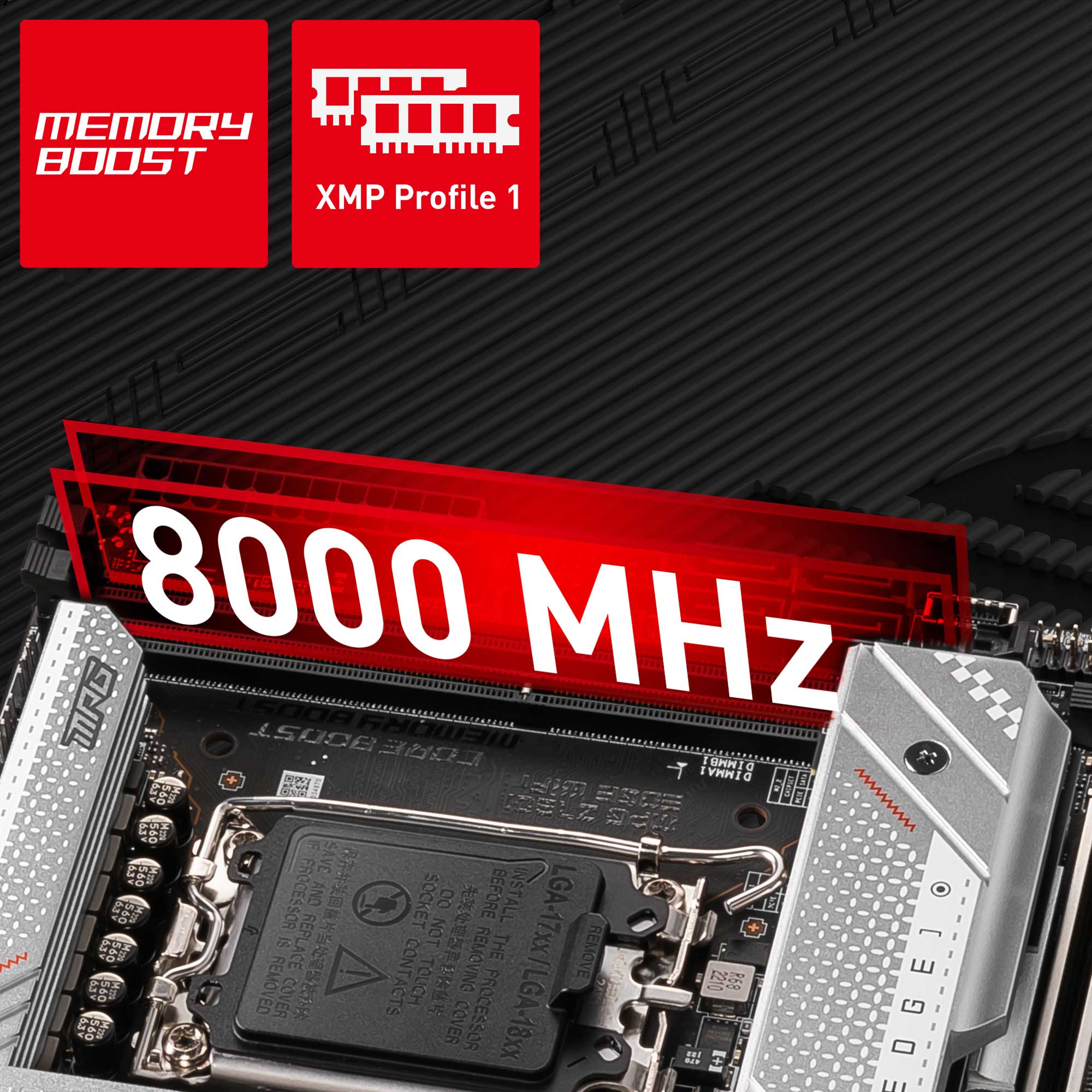

2 x DDR5 Dual Channel (8000 MHz OC)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 8000+ MHz, supports Intel XMP.

Fortified PCI-e 5.0 x16

MSI PCI Express Steel Armor slot is secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCI-e 5.0/4.0/3.0 x16 slot (with Steel Armor*)

*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen4 M.2 Connectors

The MPG Z790I EDGE WIFI motherboard features MSI's Gen4 M.2 slots:

2 x Gen4 x4 64Gb/s slots

1 x Gen3 x4 32Gb/s slot

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

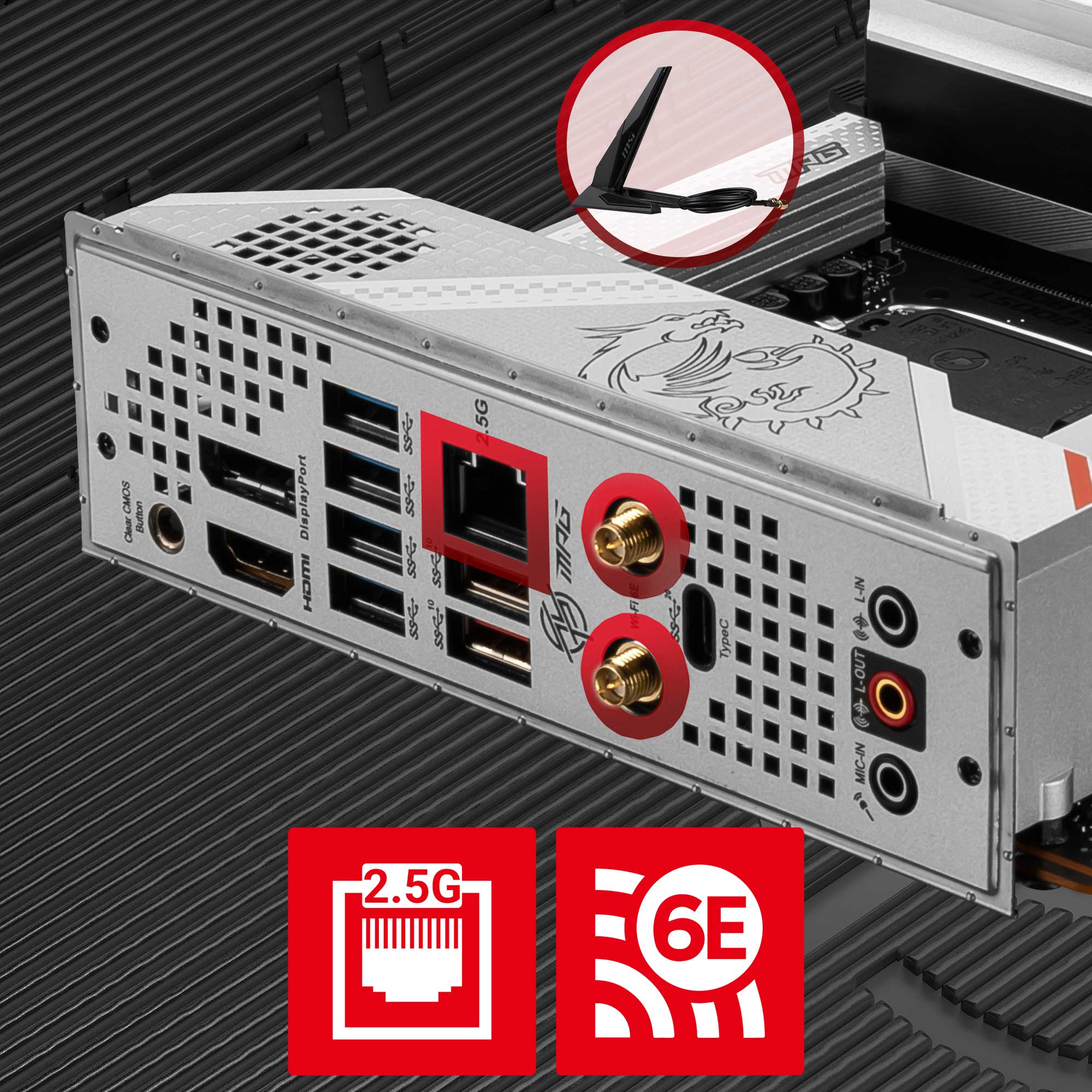

Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: An Intel 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.

HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5.

Return Period	15 Days
Defective Exchange Period	30 Days
Manufacturer Warranty	3 Years

Return Period	15 Days
Defective Exchange Period	30 Days
Manufacturer Warranty	3 Years

Brand	MSI	Model	Z790IEDGE
Chipset	Z790	Memory Slots	2
Motherboard Form Factor	Mini ITX	Socket	LGA 1700
Platform	Intel	Memory	∙ 2x DDR5 memory slots, supporting up to 64GB* <br> ∙ Supports 1R 5600 MHz (by JEDEC & POR) <br> ∙ Max. overclocking frequency: <br> ∙ 1DPC 1R Max speed up to 8000+ MHz <br> ∙ 1DPC 2R Max speed up to 6600+ MHz <br> ∙ Supports Intel® XMP3.0 OC <br> ∙ Supports Dual-Controller Dual-Channel mode <br> ∙ Supports non-ECC, un-buffered memory
Expansion Slot	1x PCIe 5.0 x16 slot (From CPU)	Onboard Graphics	∙ 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz/* <br> ∙ 1x HDMI 2.1 with HDR port, supporting a maximum resolution of 4K 60Hz/ *
SATA Ports	4x SATA 6Gb/s ports (From Z790 chipset)	RAID	∙ Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices <br> ∙ Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices
Audio	Realtek® ALC4080 Codec <br> ∙ 7.1-Channel High Definition Audio	LAN	1x Intel® 2.5Gbps LAN controller
Wireless LAN & Bluetooth®	Intel® Wi-Fi 6E <br> ∙ The Wireless module is pre-installed in the M.2 (Key-E) slot <br> ∙ Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps <br> ∙ Supports 802.11 a/ b/ g/ n/ ac/ ax <br> ∙ Supports Bluetooth® 5.2**, FIPS, FISMA	Power Connectors	∙ 1x 24-pin ATX main power connector <br> ∙ 1x 8-pin ATX 12V power connectors
Internal USB Connectors	∙ 1x USB 3.2 Gen 2x2 20Gbps Type-C connector <br> ∙ 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2x USB 3.2 Gen 1 5Gbps ports) <br> ∙ 1x USB 2.0 connector (supports additional 2x USB 2.0 ports)	Fan Connectors	∙ 1x 4-pin CPU fan connector <br> ∙ 1x 4-pin water-pump fan connector <br> ∙ 1x 4-pin system fan connector
Back Panel Connectors	∙ 1x Clear CMOS button <br> ∙ 1x DisplayPort port <br> ∙ 1x HDMI port <br> ∙ 4x USB 3.2 Gen 1 5Gbps Type-A ports <br> ∙ 2x USB 3.2 Gen 2 10Gbps Type-A ports <br> ∙ 1x LAN (RJ45) port <br> ∙ 1x USB 3.2 Gen 2x2 20G Type-C port (From ASM3241) <br> ∙ 2x Wi-Fi Antenna connectors <br> ∙ 3x OFC audio jacks

NO HEADER

Brand	MSI
Model	Z790IEDGE
Chipset	Z790
Memory Slots	2
Motherboard Form Factor	Mini ITX
Socket	LGA 1700
Platform	Intel
Memory	∙ 2x DDR5 memory slots, supporting up to 64GB* <br> ∙ Supports 1R 5600 MHz (by JEDEC & POR) <br> ∙ Max. overclocking frequency: <br> ∙ 1DPC 1R Max speed up to 8000+ MHz <br> ∙ 1DPC 2R Max speed up to 6600+ MHz <br> ∙ Supports Intel® XMP3.0 OC <br> ∙ Supports Dual-Controller Dual-Channel mode <br> ∙ Supports non-ECC, un-buffered memory
Expansion Slot	1x PCIe 5.0 x16 slot (From CPU)
Onboard Graphics	∙ 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz/* <br> ∙ 1x HDMI 2.1 with HDR port, supporting a maximum resolution of 4K 60Hz/ *
SATA Ports	4x SATA 6Gb/s ports (From Z790 chipset)
RAID	∙ Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices <br> ∙ Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices
Audio	Realtek® ALC4080 Codec <br> ∙ 7.1-Channel High Definition Audio
LAN	1x Intel® 2.5Gbps LAN controller
Wireless LAN & Bluetooth®	Intel® Wi-Fi 6E <br> ∙ The Wireless module is pre-installed in the M.2 (Key-E) slot <br> ∙ Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps <br> ∙ Supports 802.11 a/ b/ g/ n/ ac/ ax <br> ∙ Supports Bluetooth® 5.2**, FIPS, FISMA
Power Connectors	∙ 1x 24-pin ATX main power connector <br> ∙ 1x 8-pin ATX 12V power connectors
Internal USB Connectors	∙ 1x USB 3.2 Gen 2x2 20Gbps Type-C connector <br> ∙ 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2x USB 3.2 Gen 1 5Gbps ports) <br> ∙ 1x USB 2.0 connector (supports additional 2x USB 2.0 ports)
Fan Connectors	∙ 1x 4-pin CPU fan connector <br> ∙ 1x 4-pin water-pump fan connector <br> ∙ 1x 4-pin system fan connector
Back Panel Connectors	∙ 1x Clear CMOS button <br> ∙ 1x DisplayPort port <br> ∙ 1x HDMI port <br> ∙ 4x USB 3.2 Gen 1 5Gbps Type-A ports <br> ∙ 2x USB 3.2 Gen 2 10Gbps Type-A ports <br> ∙ 1x LAN (RJ45) port <br> ∙ 1x USB 3.2 Gen 2x2 20G Type-C port (From ASM3241) <br> ∙ 2x Wi-Fi Antenna connectors <br> ∙ 3x OFC audio jacks
